2023+ Ford F250/F350 4x4 Low Mount Steering Stabilizer with Diff Guard

Minimizing resonation from encountered road obstacles into the front end parts is KEY to combating front end issues like death wobble. We’ve always offered a high mount stabilizer to combat steering wheel feedback in these trucks. The stainless steel design is far superior to the factory unit boasting a custom valve profile improving control of larger aftermarket wheel and tire combinations, offered adjustability to combat right-hand tire pull and is fully rebuildable all while bolting into the factory location ensuring it’s not susceptible to trail damage like many aftermarket stabilizer units are that mount in front of lower steering linkage.

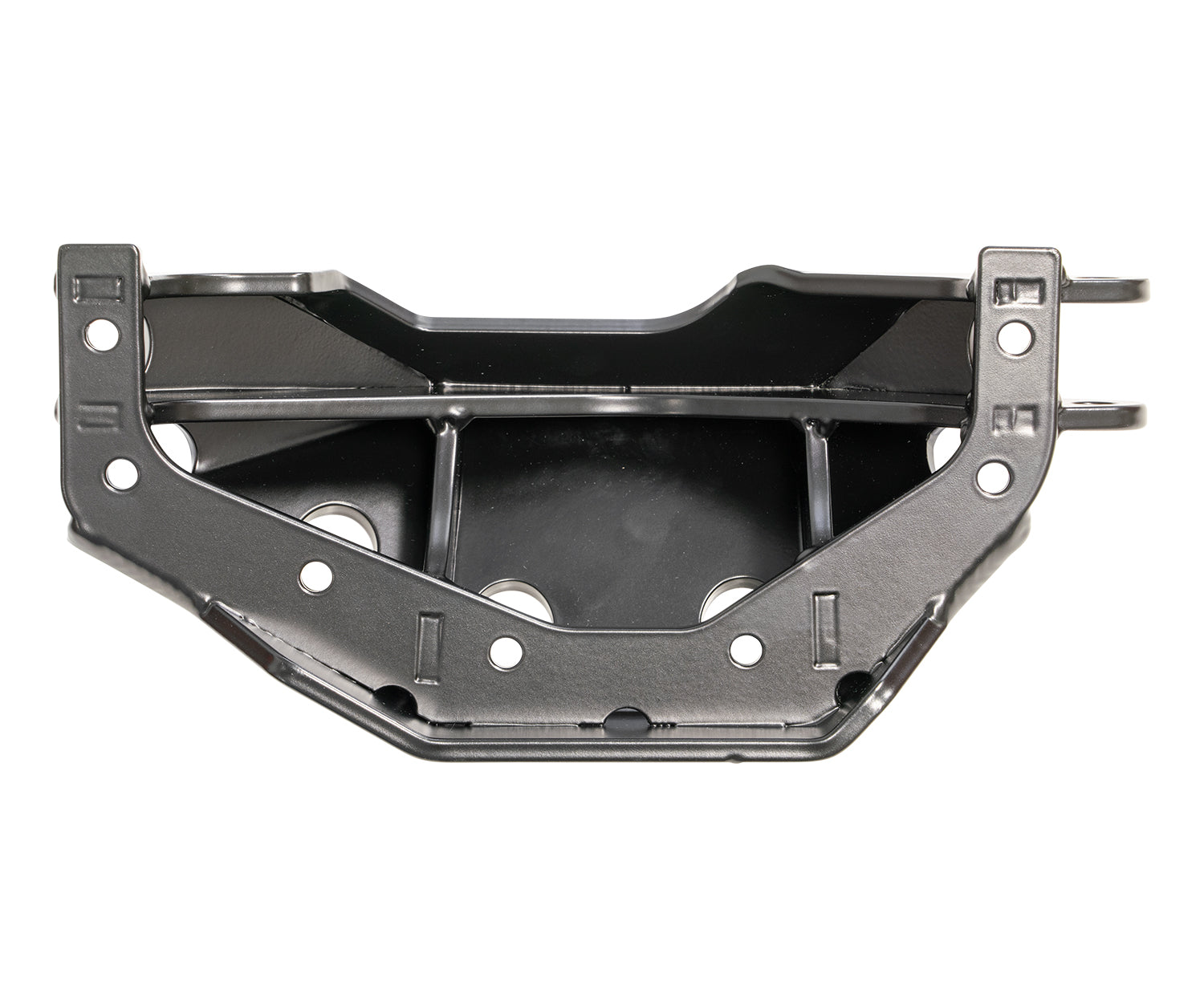

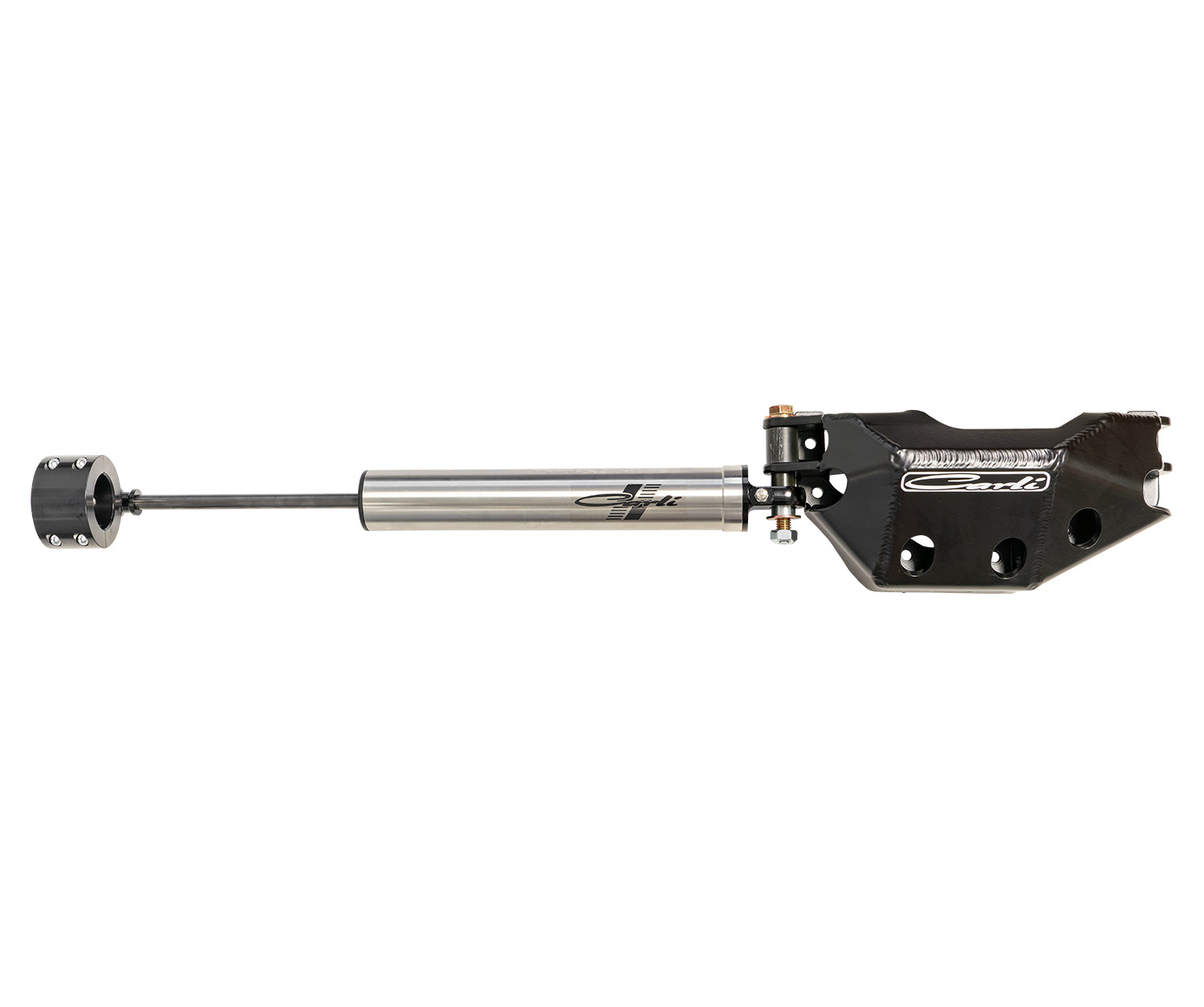

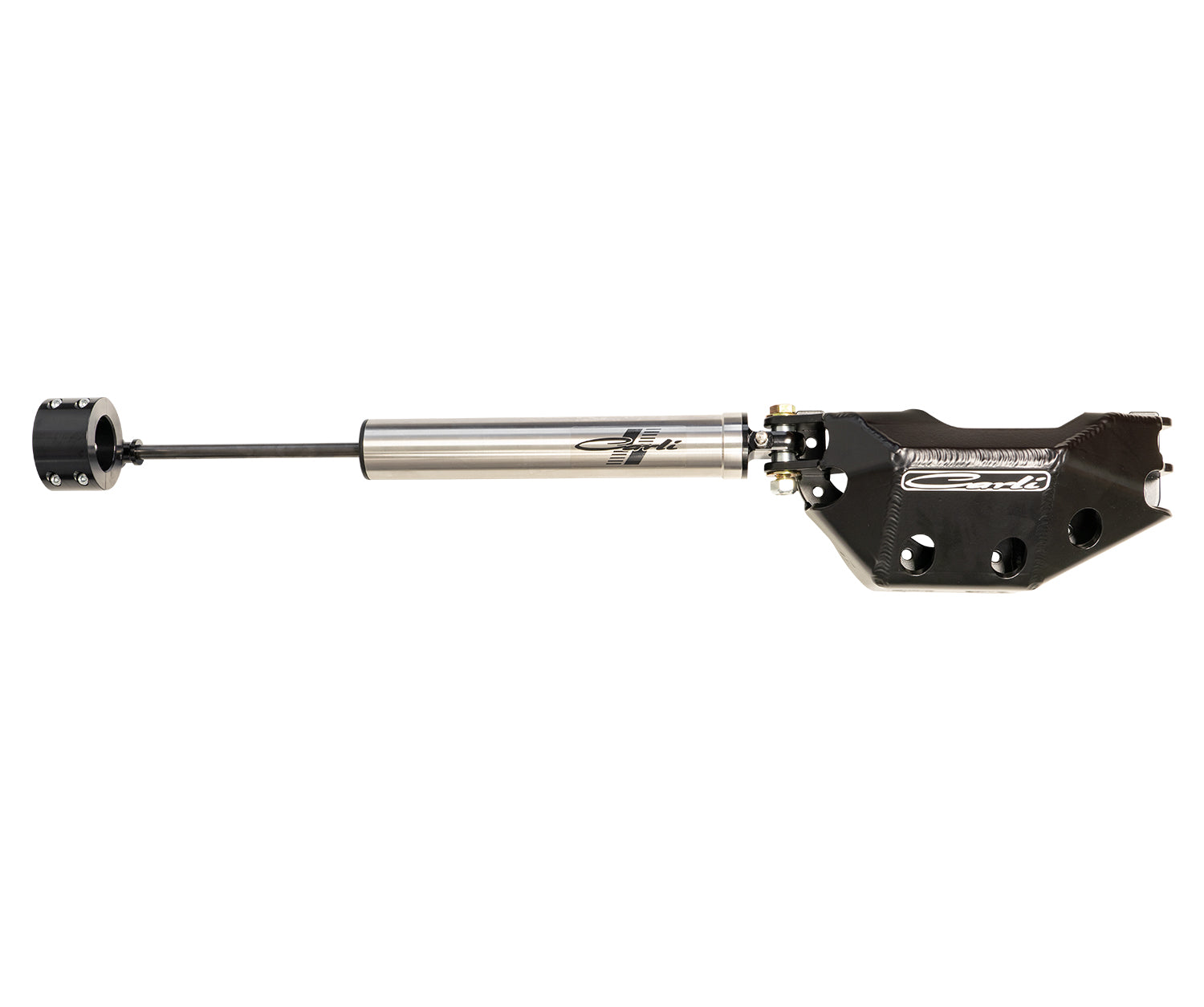

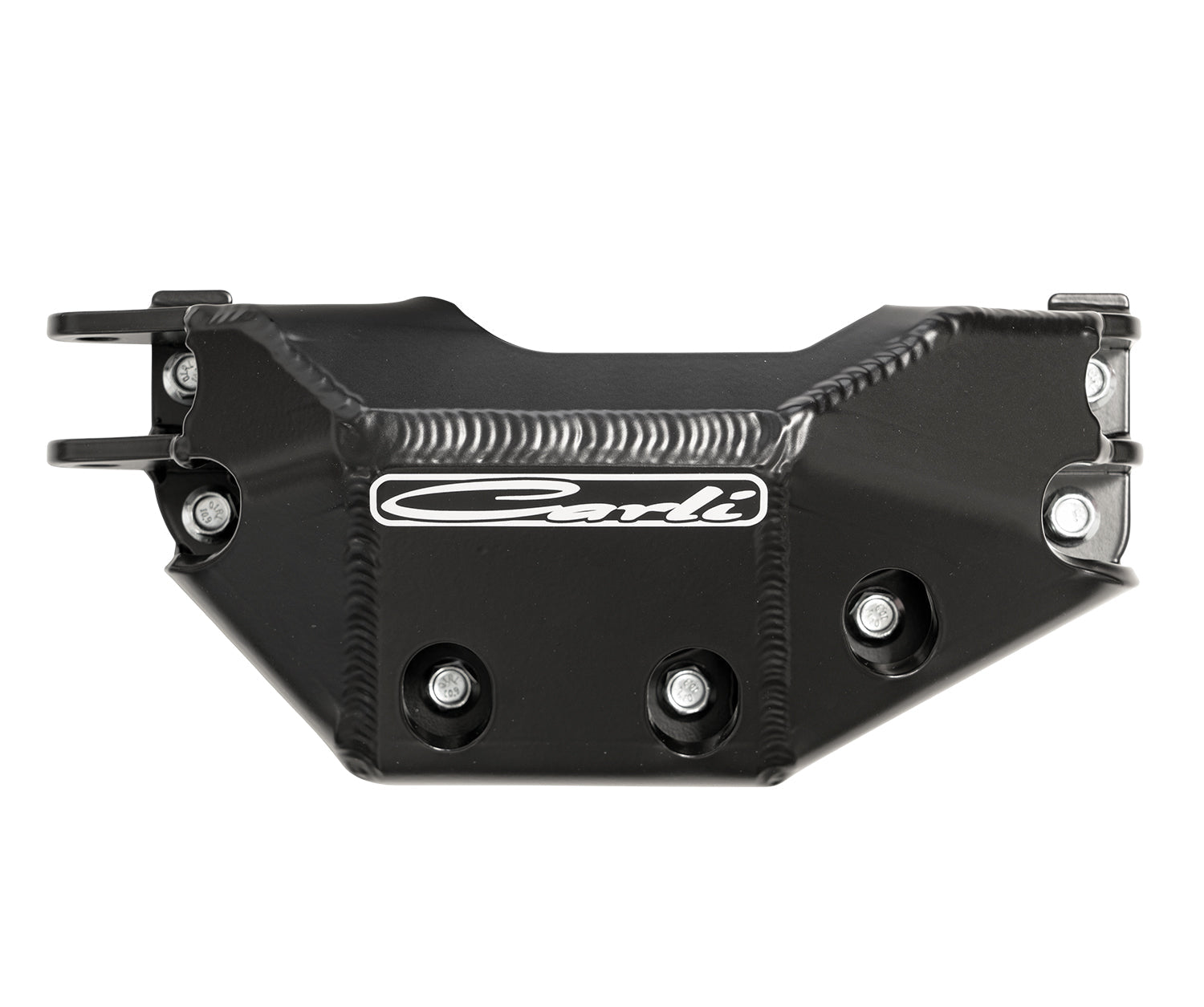

The Low Mount Stabilizer features a Stainless Steel body, hardened Nitride Shafts, and precision bearings for long-lasting performance and appearance. The Stabilizer runs behind the tie-rod to ensure it’s protected. One side mounts to our redesigned Differential Guard, the other side secures to our Billet Clamp with out high-misalignment stud. The differential guard boasts Boxed 3/16″ construction and utilizes factory diff cover holes.

There are two configurations for mounting the stabilizer to the differential guard itself. We, of course, designed this setup to work with our 2.5″-5.5″ Lift  Systems.

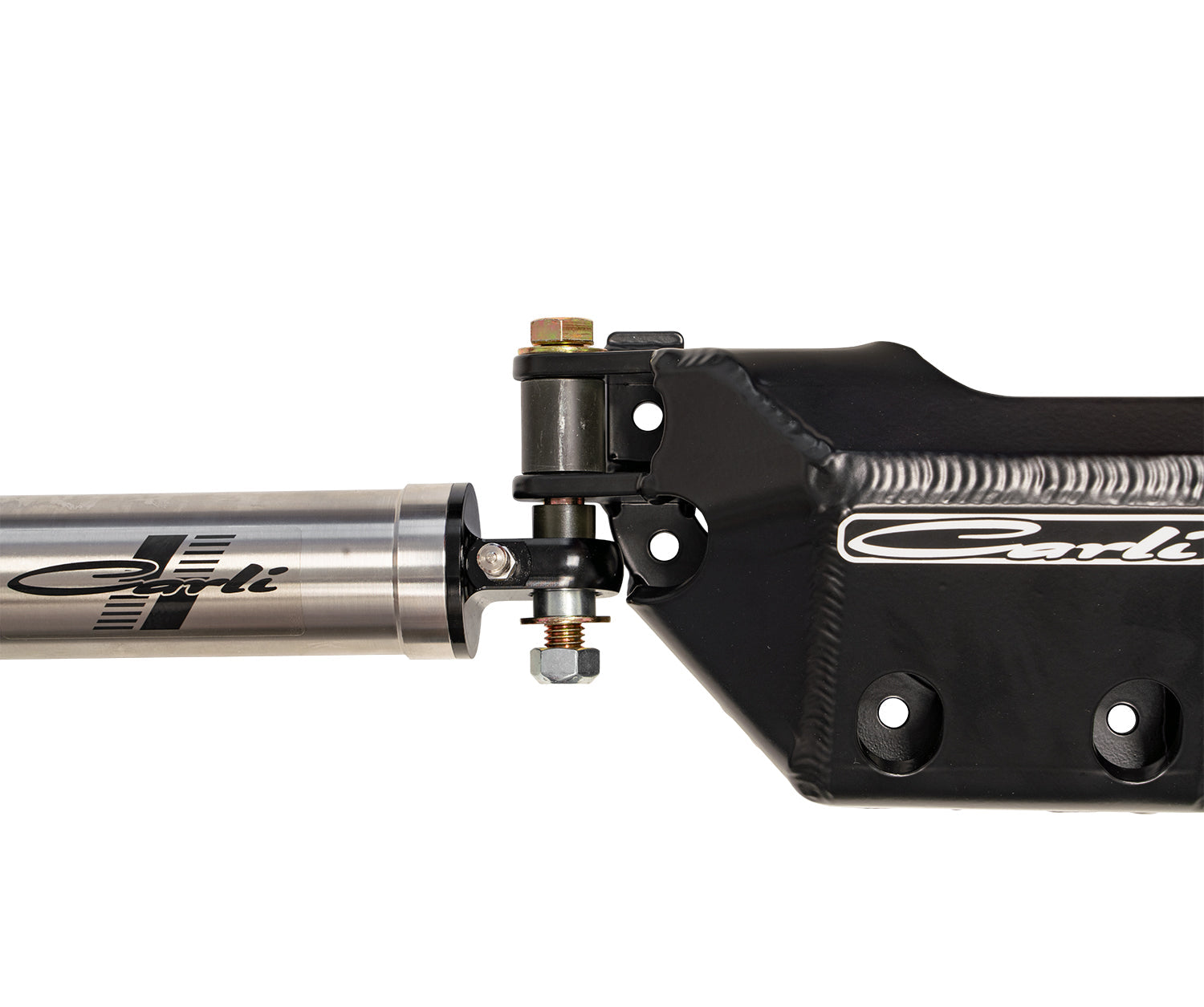

To clear the track bar on our 2.5″ & 3.5″ Systems, the stabilizer is mounted to the bottom of the Diff-Skid bracket with two bearing spacers and the provided longer bolt. Spacing the bracket is a provided crush sleeve. This provides ample clearance for the bend in our adjustable track bar throughout the entire travel stroke.

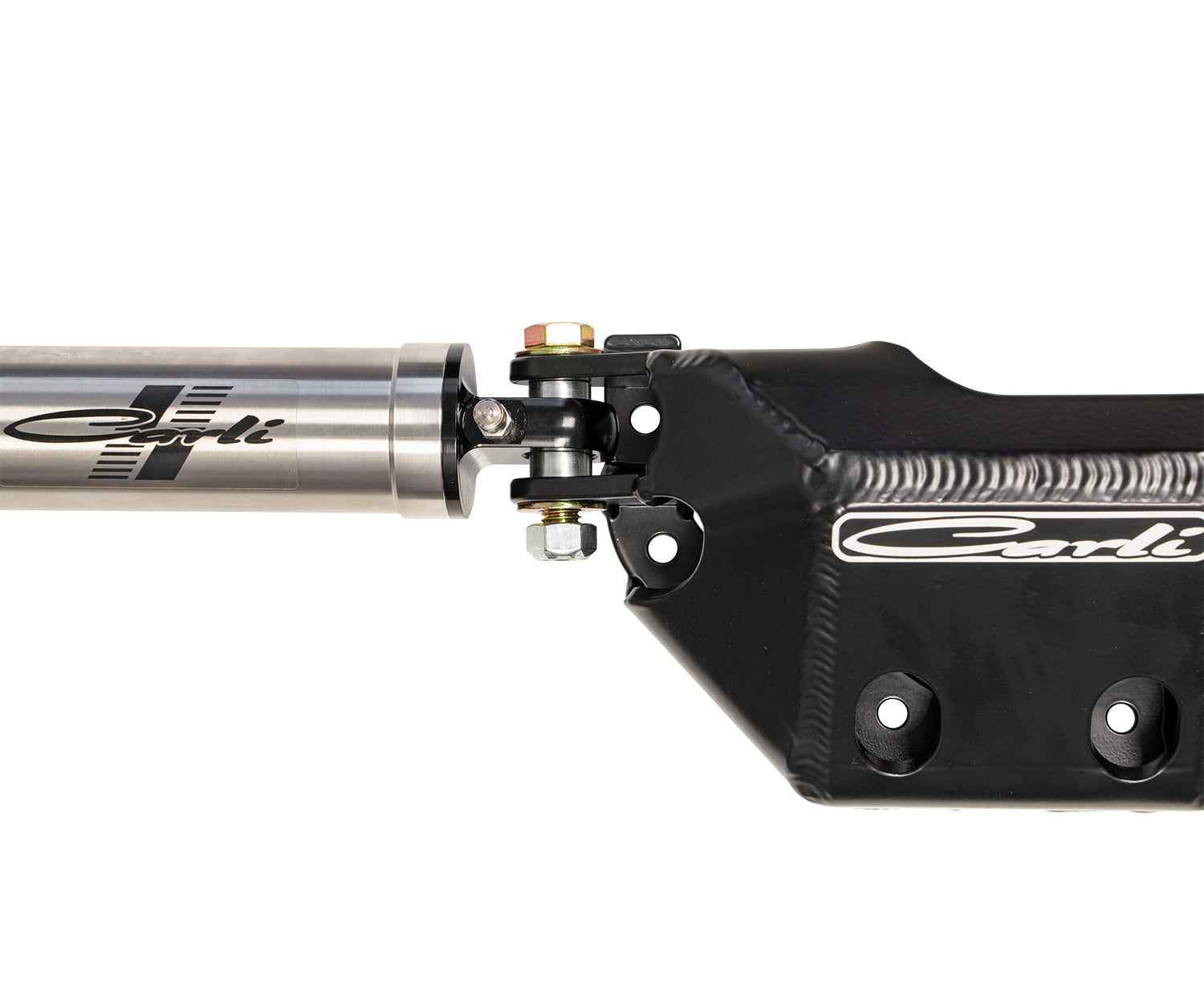

In the 4.5″-5.5″ configuration, the shorter, provided, bolt is utilized to install the stabilizer within the double-shear bracket.

In both configurations, the stabilizer connects to the tie-rod assembly with our in-house machined, hard anodized billet steering clamp utilizing our 17-4 Stainless steel high-misalignment stud.

• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
• Includes Differential Guard and Clamp
• Combines with High-Mount Stabilizer for Opposing Setup
• Fitment: 2023+ Ford F250/350 4×4
