'10-12 Dodge Ram 2500/3500 Radius Arm System-6" Lift

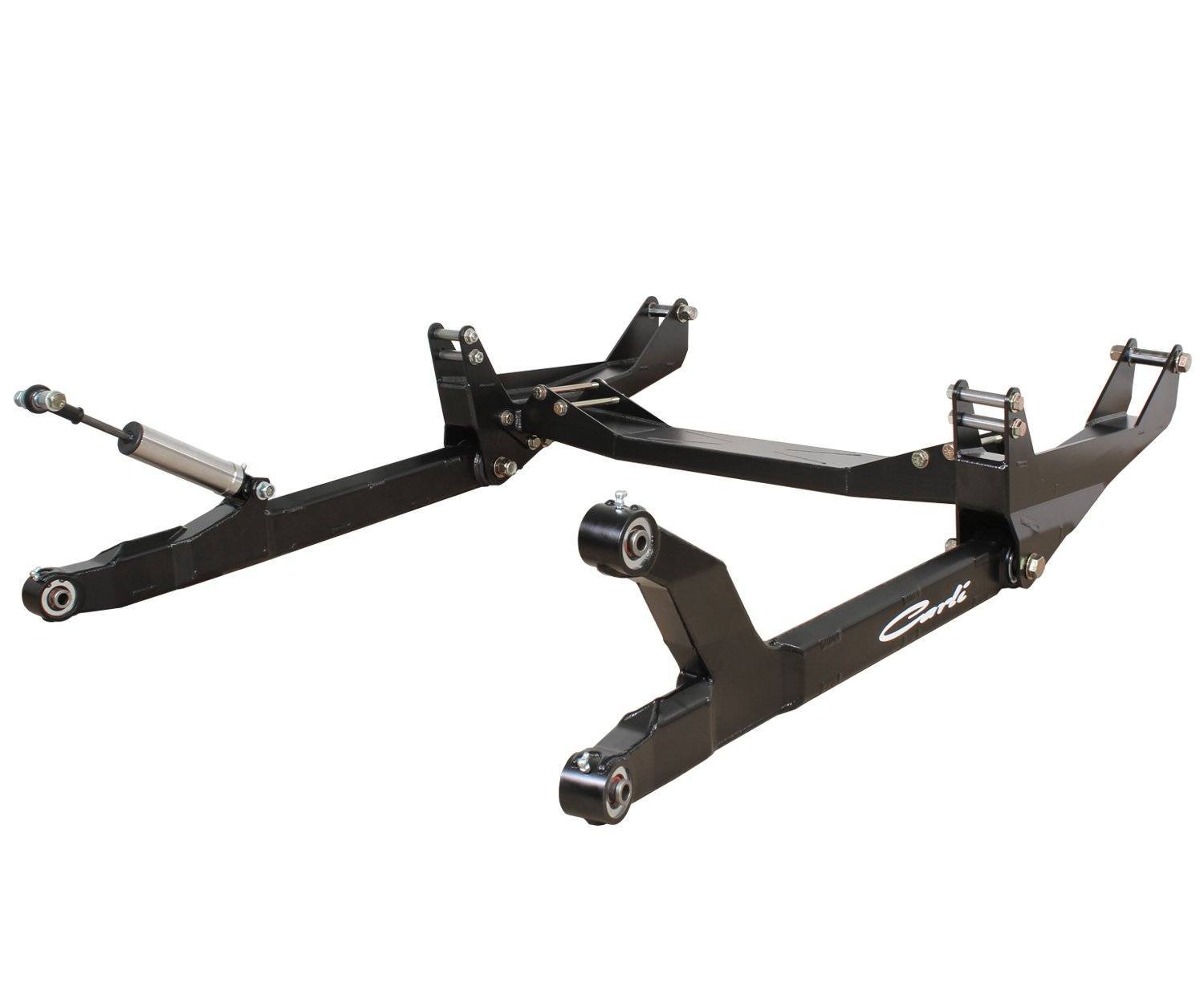

Carli's 6″ lift radius arms for the 2010-2012 Dodge Ram 2500/3500 were engineered for exact geometry. The result is maximum strength 3/16″ construction with full-length 1/4″ internal gussets, zero-bind axle articulation thanks to the axle control shock, and maximum wheel travel given their length. The design is a 3 link with a custom axle control shock on the driver’s side arm. A custom built and tuned stainless plunger shock controls low-speed axle articulation movement maintaining precise suspension geometry offering the longest service life and most articulation of any long-arm conversion.

FITMENT:

• 2010-2012 Dodge Ram 2500/3500


KIT CONFIGURATION:

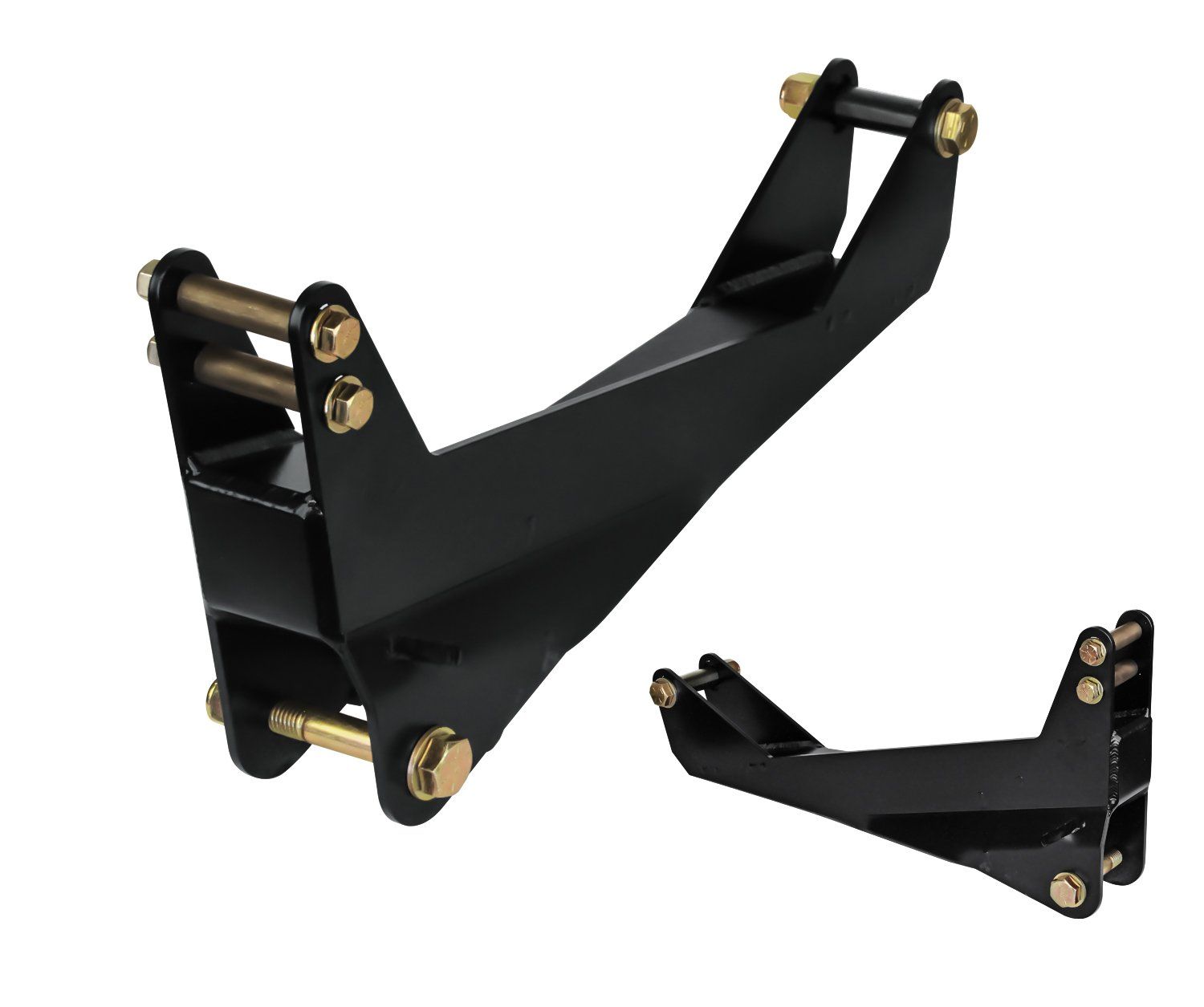

• Short Crossmember (2-Piece)-CS-DRA6-10-S
• 3 Link Design with Stainless Axle Control Shock for Max Articulation
• 2 piece crossmemebers brace to existing frame structure (Pictured with 1-piece)
• 3/16" Construction, 1/4" Internal Gusseting
• 17-4 Stainless Serviceable Spherical Bearings
• For 6" Lift Systems

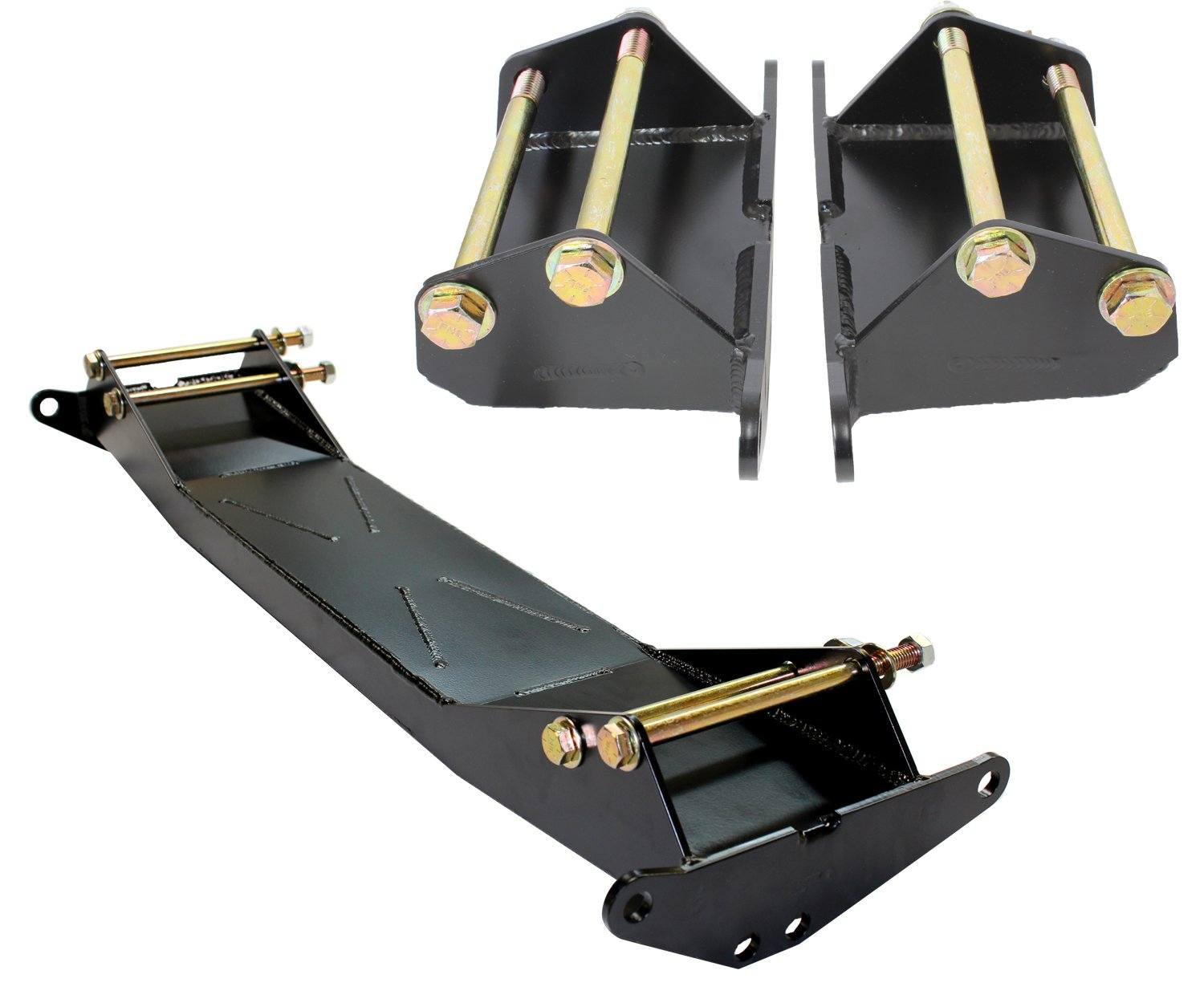

• Long Crossmember (1-Piece)-CS-DRA6-10-L
• 3 Link Design with Stainless Axle Control Shock for Max Articulation
• 1 piece crossmemeber for unmatched strength
• 3/16" Construction, 1/4" Internal Gusseting
• 17-4 Stainless Serviceable Spherical Bearings
• For 6" Lift Systems
