'98-12 Ford Ranger XLT 2WD Camburg RACE Long Travel Kit
'98-12 Ford Ranger XLT 2WD Camburg RACE Long Travel Kit
Shop location
1201 American Pacific Drive
Suite B
Henderson NV 89074
United States
Choose options
This is the ultimate in high performance Race proven off-road suspension. This system will give you up to 18 of travel with a massive 1.5 lower mono balls and 1 uppers; just like the Trophy Trucks. The lower pivots are not urethane, or Delrin they are massive 1 mono balls. This kit is high end so if you are looking for the best off-road system for your A-Arm Ranger you have found it.
The race kit uses our Camburg 2.25 front hubs along with Wilwood 12 rotors and their 4 piston superlite calipers. With the bigger hubs youll need a wheel that has a 5 on 5.5 bolt pattern with a 4.25 center-bore for 5/8 wheel studs.

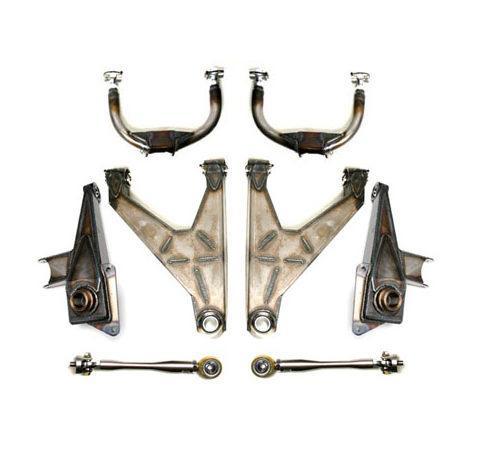

WHAT'S INCLUDED:
- Heim upper arms
- Boxed lower arms
- Fabricated spindles
- Heims and uni-balls w/spacers.
- Custom Steering Upgrade
- Camburg 2.25 Billet Hubs
- Wilwood disc brakes
SPECS:
| Wheel Travel | Track Width | Wheel Size | Max Backspacing | Tire Size |
|---|---|---|---|---|
| 16-18in | +5in per side | 15-17 in | 4.75 inch | 33-35 in |
